Can-Am X3 - ZRP 7075 Front Double Shear Capped Knuckle Set
Shipping & pickup: Parcel delivery rates are calculated at checkout. If your order includes a freight item, all warehouse items ship together by freight; request a quote for the complete warehouse order before payment. Printify merchandise ships separately with its own shipping charge where applicable. San Bernardino pickup may be offered for eligible warehouse items; wait for pickup confirmation before visiting.

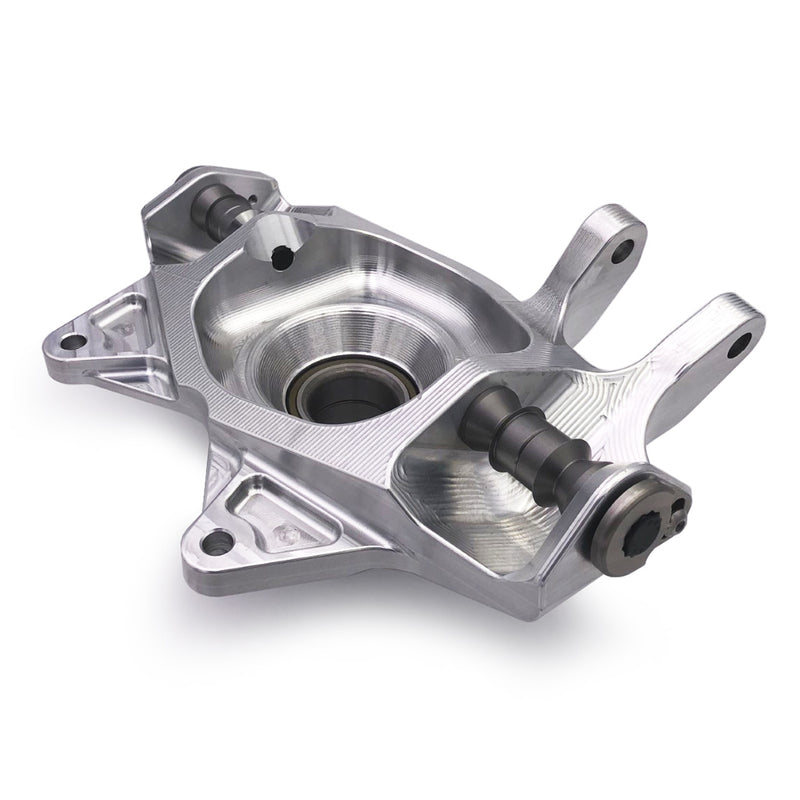

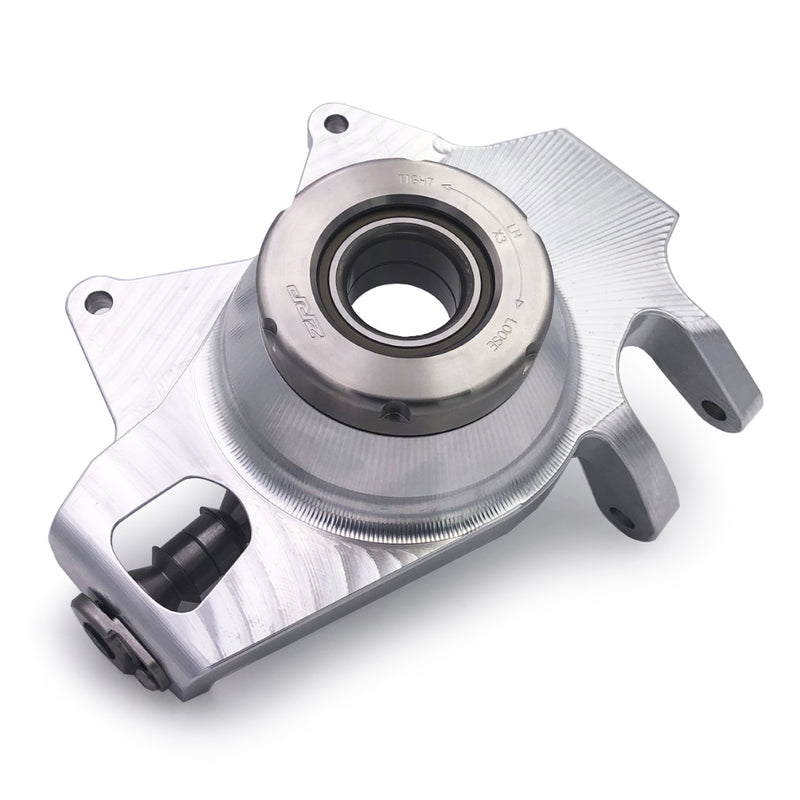

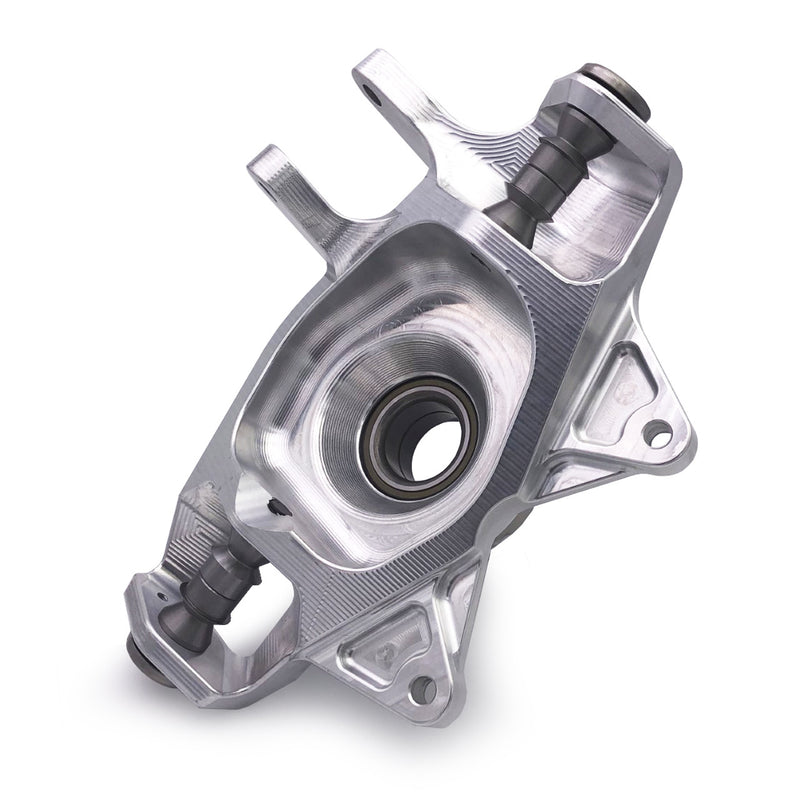

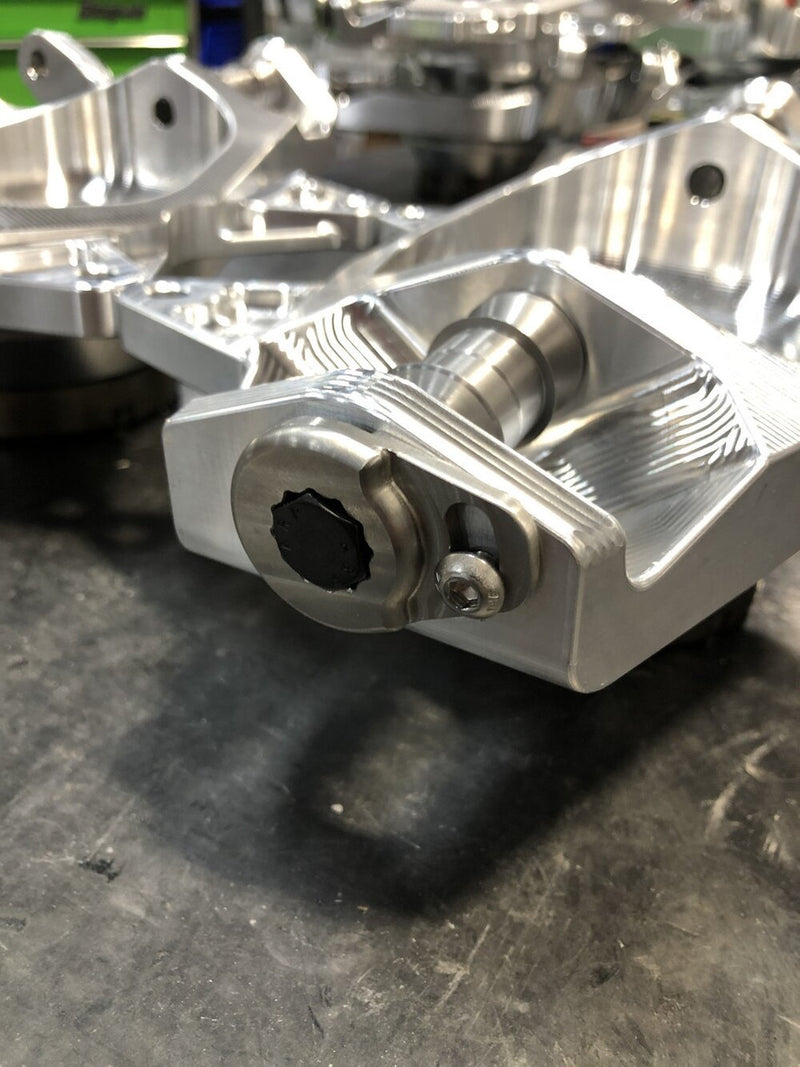

ZRP 7075 Front Double-Shear Capped Knuckle Set – Can-Am Maverick X3
Billet 7075 front-knuckle set for Can-Am Maverick X3 applications using compatible 7/8-inch uniball or rod-end upper and lower control-arm connections.
Product at a Glance
| Brand | ZRP |
|---|---|
| Product Type | Can-Am X3 Suspension |
| Vehicle Fitment | Can-Am Maverick X3 / X3 MAX with compatible 7/8-in. uniball / rod-end A-arms |
| Material | USA-machined 7075 billet aluminum |
Important Fitment
These knuckles do not work with standard ball-joint A-arms. Compatible A-arms must use a 7/8-inch uniball or rod-end configuration.
Included Per Set
- Left and right double-shear front knuckles
- 4 ARP bolts
- 8 7/8-inch uniball misalignment spacers
- 4 anti-rotation locking caps with screws
- Left- and right-hand threaded caps
- Threaded-cap installation/removal tool
- OEM wheel bearings installed and torqued
Installation Notes
- Follow factory procedures for knuckle removal and installation except where ZRP specifies otherwise.
- ZRP specifies 53 ft-lb for the supplied ARP bolts, with 48–60 ft-lb as the stated acceptable range.
- For racing use, ZRP's instructions call for blue threadlocker on the ARP bolt threads.
- Tighten from the nut side rather than the bolt head.
- ZRP specifies at least 180 ft-lb axle torque.
ZRP reports lab testing to approximately 86,000 lb versus 17,000 lb for the factory comparison part. Treat this as the manufacturer's test claim.
