    2014 – 2018 POLARIS XP1000 CHROMOLY DESERT 4 SEAT LONG TRAVEL KIT

    Original price $4,400.00 - Original price $4,950.00
    Original price
    $4,400.00
    $4,400.00 - $4,950.00
    Current price $4,400.00

    2014 – 2018 Polaris XP1000/Turbo Chromoly Desert 4 Seat Long Travel Kit.

    +3″

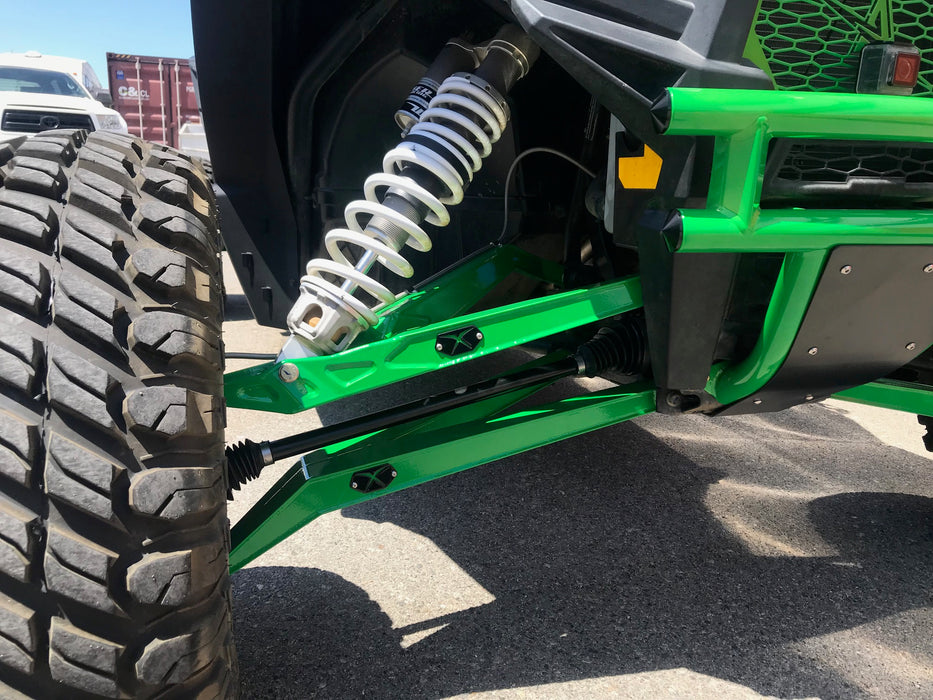

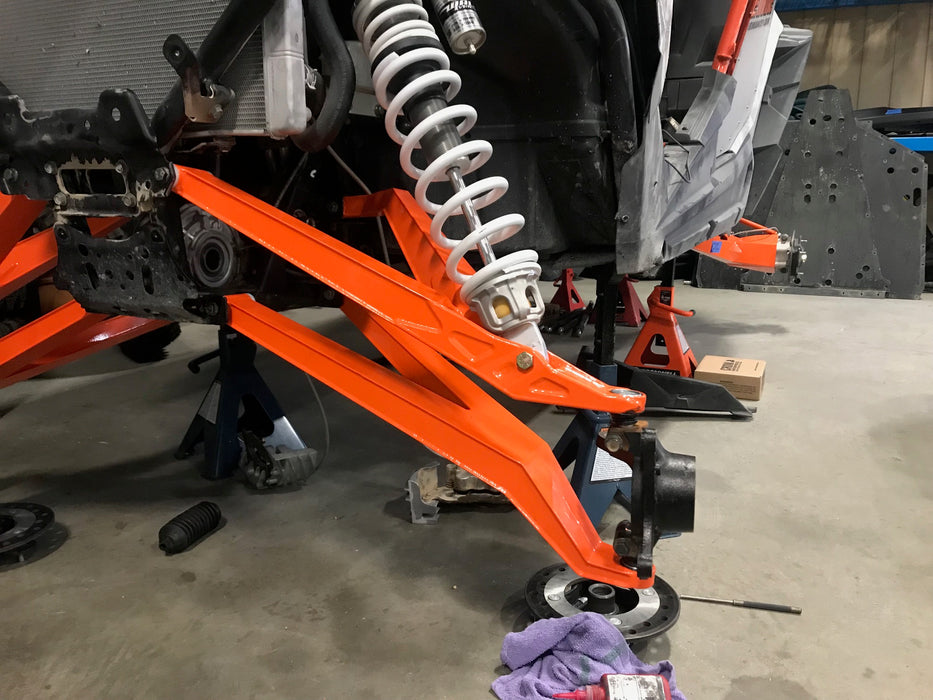

    Complete Long Travel Suspension Kit, With Chromoly Front upper and
    lower boxed Control Arms, Chromoly rear boxed trailing arms.

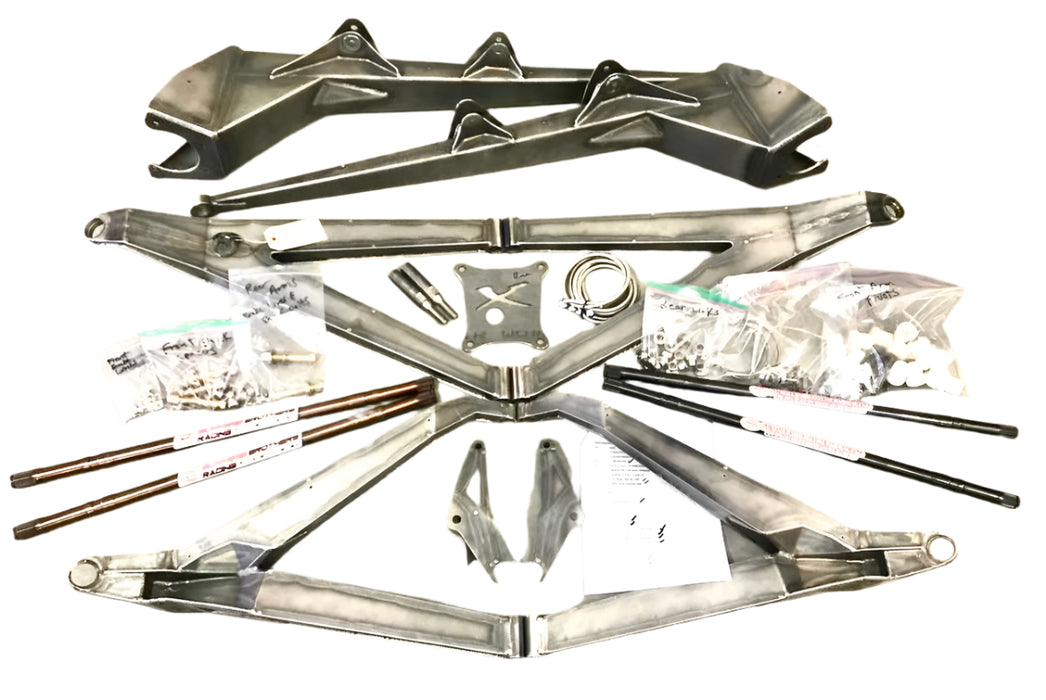

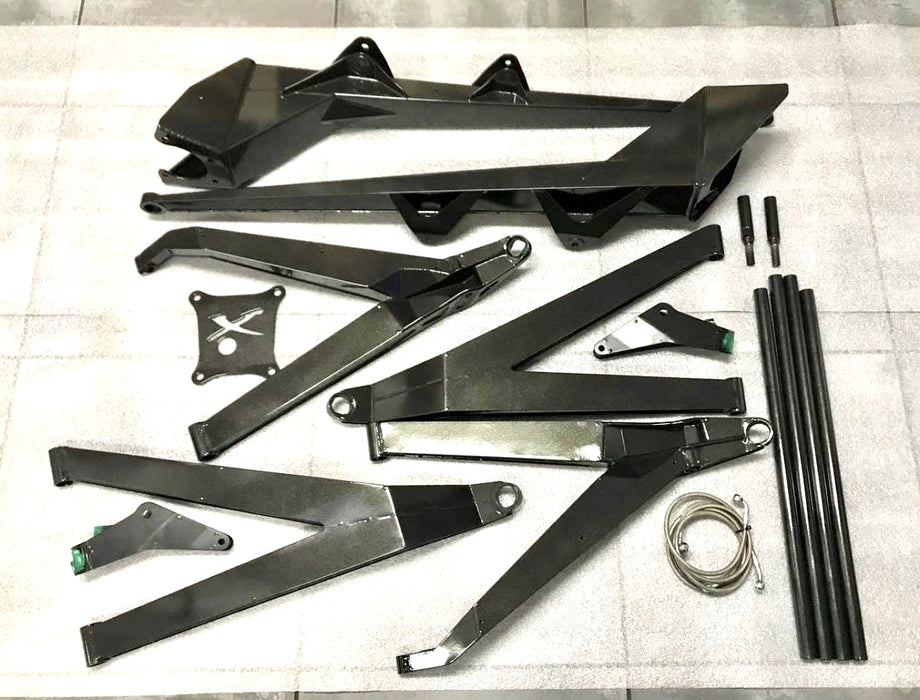

    FRONT UPPER ARM PARTS:
    QTY DISC.
    4 FRONT INBOARD BUSHING SHORT
    4 FRONT INBOARD BUSHING LONG
    2 FRONT PIVOT SHORT
    2 FRONT PIVOT LONG
    6 BRAKE LINE CLAMPS
    6 10-32 X ½ BUTTON HEAD
    2 ½-20 X 2.75 GRADE 8 BOLT FOR SHOCK LOWER
    2 ½-20 NUT GRADE 8
    4 ½ AN WASHER
    1 LEFT CHROMOLY BOXED UPPER ARM
    1 RIGHT CHROMOLY BOXED UPPER ARM

    FRONT LOWER ARMS:
    QTY DISC.
    8 FRONT INBOARD BUSHING LONG
    4 FRONT PIVOT LONG
    1 LEFT CHROMOLY BOXED LOWER ARM
    1 RIGHT CHROMOLY BOXED LOWER ARM

    UPPER CHROMOLY SHOCK MOUNTS:
    QTY DISC.
    2 ½-20 X 2.75 GRADE 8 BOLT
    2 ½-20 NUT GRADE 8
    4 ½ AN WASHER
    1 LEFT CHROMOLY BOXED UPPER MOUNT
    1 RIGHT CHROMOLY BOXED UPPER MOUNT

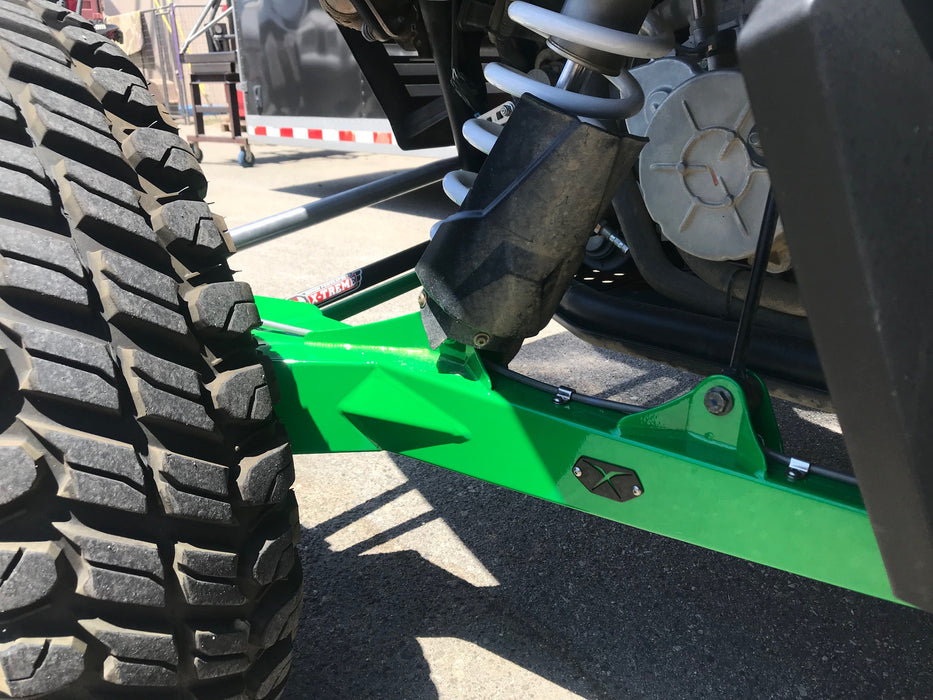

    CHROMOLY REAR BOXED TRAILING ARMS:
    QTY DISC.
    2 ½-20 X 2.75 GRADE 8 BOLT
    2 ½-20 NUT GRADE 8
    4 ½ AN WASHER
    8 10-32 X ½ BUTTON HEAD STAINLESS
    2 10-32 X ¾ BUTTON HEAD STAINLESS
    2 10-32 NYLOCK NUT STAINLESS
    1 LEFT REAR CHROMOLY BOXED TRAILING ARM
    1 RIGHT REAR CHROMOLY BOXED TRAILING ARM


    REAR SUPPORT:
    QTY DISC.
    1 REAR SUPPORT PLATE

    AXLES:
    QTY DISC.
    2 AXLES FRONT
    2 AXLES REAR
    4 #30 EMPI 86-6170- 0 CLAMP FRONT AXLE
    4 #80 EMPI 86-6179 CLAMP FRONT CV
    4 #35 EMPI 86-6171 CLAMP REAR AXLE
    4 #92 OETIKER 706-092 CLAMP REAR CV

    BRAKE LINES:
    QTY DISC.
    1 #3 70DEG X 90DEG X 53”
    1 #3 90DEG X 20DEG X 40 ½
