    WELDON A2040 SERIES BYPASS REGULATORS A2040-281-A-120

    Original price $228.20 - Original price $228.20
    Original price
    $228.20
    $228.20 - $228.20
    Current price $228.20

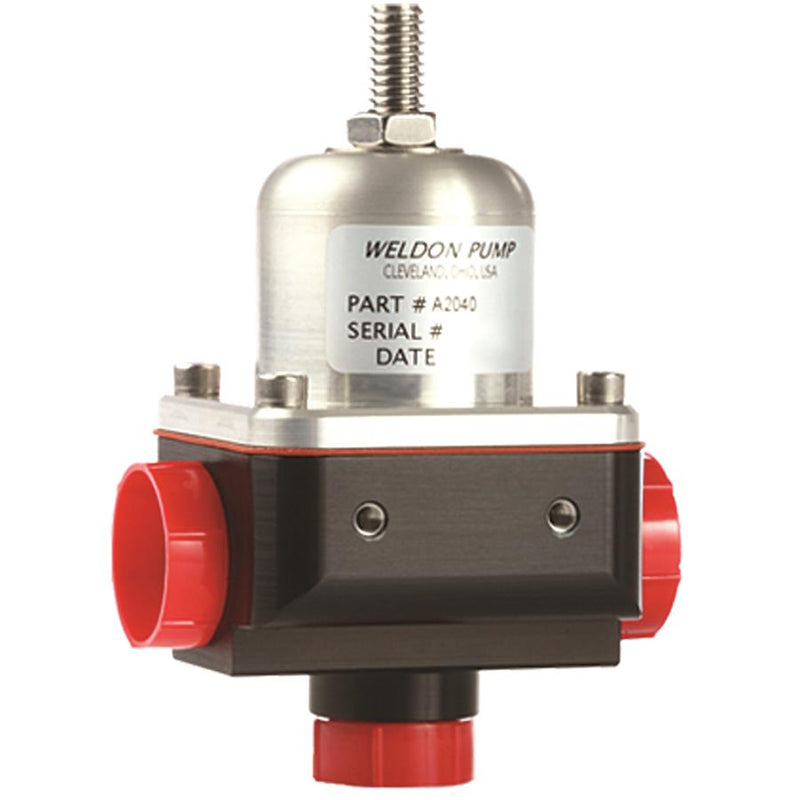

    Weldon A2040 Series Bypass Regulators A2040-281-A-120

    Pressure Range (psi): 0-110
    Regulator Style: Return
    Regulator Location: Inline
    Boost/Vacuum Reference Port: Yes
    Boost/Vacuum Rise Ratio: 1:1
    Gauge Port: Yes
    Inlet Quantity: One
    Inlet Size: -10 AN O-ring
    Inlet Attachment: Female threads
    Outlet Quantity: One
    Outlet Size: -10 AN O-ring
    Outlet Attachment: Female threads
    Return Fitting Size: -8 AN O-ring
    Return Attachment: Female threads
    Fittings Included: No
    Regulator Material: Billet aluminum
    Regulator Finish: Black/Silver
    Rebuildable: Yes
    Mounting Bracket Included: No
    Quantity: Sold individually.

    Features include:
    * .281 in. bypass orifice
    * Fluorosilicone diaphragm
    * Flows up to 6 gpm
    * 1/8 in. NPT gauge port
    * 1/8 in. NPT manifold pressure reference port
    * Fuel pressure increases on a 1:1 ratio with boost
    * Two -10 pressure ports/-8 return port
    * Billet aircraft aluminum with Mil-Spec anodizing
    * Compatible with gasoline, methanol, diesel, ethanol, most racing fuels
