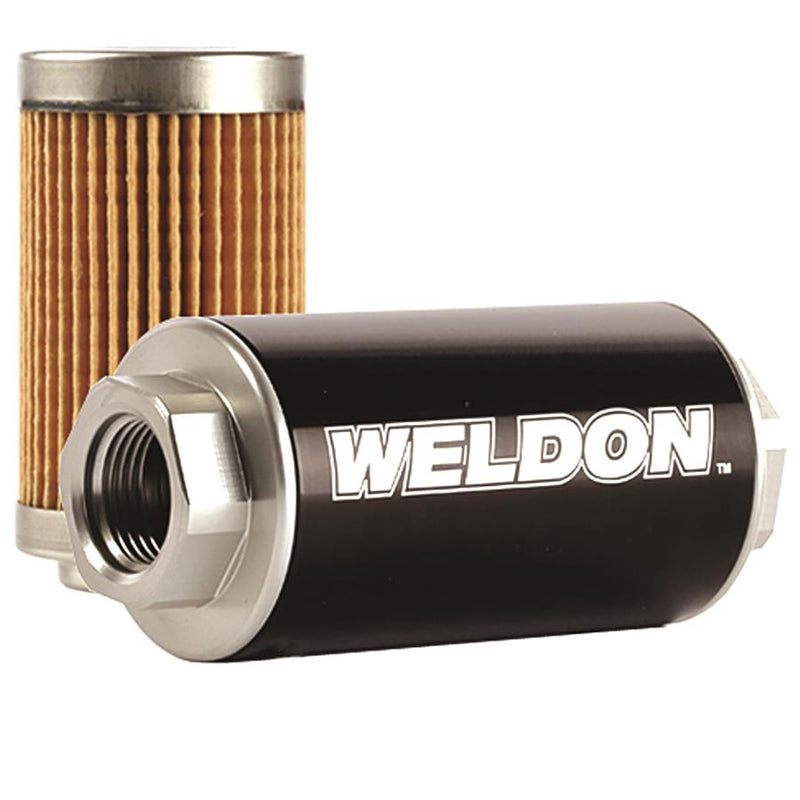

Weldon - Billet Fuel Filters - Weq1010cln
Weldon Billet Fuel Filters
Manufacturer’s Part Number: WEQ1010CLN
Fuel Filter Style: Inline
Inlet Quantity: One
Inlet Size: -10 AN O-ring
Inlet Attachment: Female threads
Outlet Quantity: One
Outlet Size: -10 AN O-ring
Outlet Attachment: Female threads
Filter Element Included: Yes
Smallest Particle Filtered: 10 microns
Filter Element Material: Cellulose
Filter Housing Material: Billet aluminum
Filter Housing Finish: Black/Clear anodized
Overall Length (in): 5.500 in.
Outside Diameter (in): 2.375 in.
Mounting Bracket Included: No
Fittings Included: No
Clamps Included: No
Quantity: Sold individually.
Weldon billet fuel filters trap contaminants you don’t want in your fuel.
These assemblies feature Mil-Spec anodizing, along with port configurations
and filter media to fit most any application.
Features of Weldon billet aluminum filter assemblies:
* Cellulous or stainless steel elements
* Choice of 10, 40, or 100 micron filters
* Multiple options for O-ring port sizes
* Over 60 sq. inches of filtering area
* Radiused end caps to improve fuel flow within filter
* Black/clear MIL-SPEC anodizing for a long lasting high-performance finish
* Minimal pressure drop
* Replacement filter elements available
